Audio Boards and Controllers

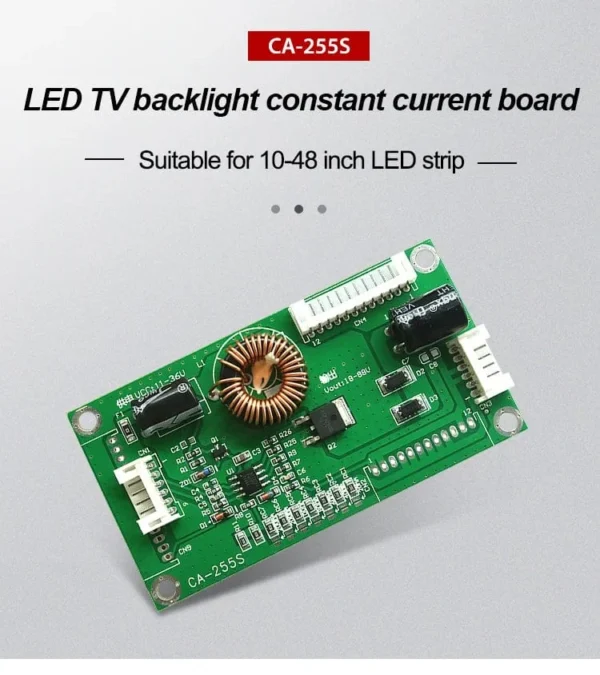

QICCT-CA-255S Single Coil Universal Backlight Inverter Board 10-48 Inch LED TV
₹175.00 ₹499.00
This single coil universal backlight inverter board is compatible with 10-48 inch LED TVs. With its efficient design, it ensures optimal backlighting for a more immersive viewing experience. Enhance the clarity and Enjoy a smooth visual experience with this reliable and powerful driver board.
- Compatible Device : LED/LCD TV
- Model Number : CA-255S
- Product Type : Circuit Boards
- Applicable TV Size : 10-48 inch LED/LCD TV Display
- Input Voltage : 11-36V DC
- Output Voltage : 60-165 volt automatic adaptation

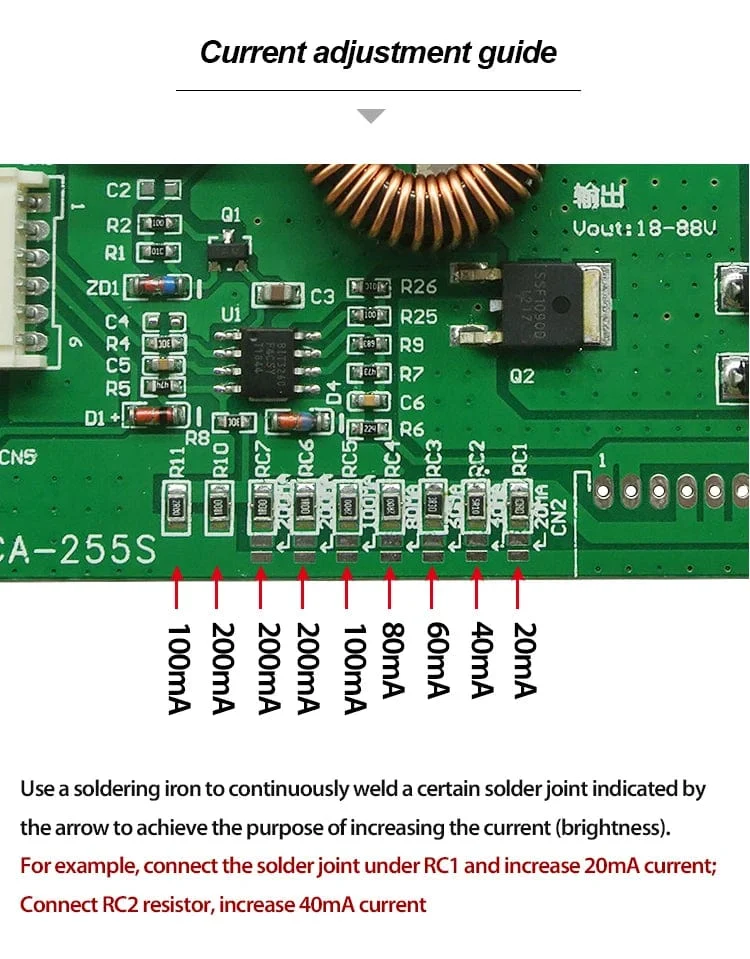

- Output Current : Which can be adjusted as required 20-1000mA (can be set)
- Country of Origin : China
Based on 0 reviews
Be the first to review “QICCT-CA-255S Single Coil Universal Backlight Inverter Board 10-48 Inch LED TV”
